EECS 183 Project 4: Battleship
Due Friday, March 18th at 8:00 p.m. (accepted until 11:59:59 p.m.)
Direct submission link
In this project, you will use C++ to create the classic Battleship game. You will implement it as a one-player game so a user will always be playing against the computer’s CPU. If you’re not a familiar with the game, take a look at the wikipedia page. Your game program will be able to read the player and CPU grids –containing the locations of war ships– using text files. Once the grids are set up, a user will continuously play the game by typing the moves they wish to play against the CPU. In turn, the CPU will retaliate with its own move. The game ends when all ships from either the user or the CPU are taken down, or when the maximum number of rounds is reached.
Beware the autograder-cheat-detector magic machine, see the Honor Code for further information.
Learning Objectives
-
To learn how to use more advanced techniques in C++, such as classes and separate compilation.
-
To reinforce your knowledge of classes and file input/output operations.
Honor Code
All students in the class are presumed to be decent and honorable, and all students in the class are bound by the College of Engineering Honor Code.
-
You may not seek to gain an unfair advantage over your fellow students;
-
You may not consult, look at, or possess the unpublished work of another without their permission;
-
You are not allowed to look at or in any way derive advantage from the existence of project specifications or solutions either for the current semester or for past semesters; and
-
You must appropriately acknowledge your use of another’s work.
Any violation of the honor policies appropriate to each piece of coursework will be reported to the Honor Council, and if guilt is established penalties may be imposed by the Honor Council and Faculty Committee on Discipline. Such penalties can include, but are not limited to, letter grade deductions or expulsion from the University.
We run every submission against every other submission and determine similarities using a program called MOSS, developed at Stanford University specifically for the purpose of detecting software plagiarism. Code shared between students will cause MOSS to identify both students’ programs as “too similar”.
We also search the web for solutions posted online and compare them to your solutions. Searching the web, by the way, is something that we are very good at.
All projects that are “too similar” are forwarded to the Engineering Honor Council.
Note that on all cases forwarded to the Engineering Honor Council the LSA Dean of Academic Affairs is also notified. Furthermore, please be aware that by LSA administrative policy students involved in honor violations cannot withdraw from nor drop the course.
Grading
Testing (10 points)
Write a test suite in test.cpp
. To receive a 5% bonus for this part,
submit it no later than March 16th. To receive a 2.5% bonus, submit no
later than March 17th.
Correctness (60 points)
Implement functions in Position.cpp
, Ship.cpp
, Player.cpp
, and
Game.cpp
. To what extent does your code implement the features
required by our specification? To what extent is your code consistent
with our specifications and free of bugs? To receive a 5% bonus for this part,
submit it no later than March 16th. To receive a 2.5% bonus, submit no
later than March 17th.
Style (10 points)
To what extent is your code written well? To what extent is your code
readable?
- Check the EECS 183 StyleGuide for a full list of what we look for!
- Check the Project 4 Style Rubric!!!
And some reminders:
-
We grade your best submit. Between your best submits, we will only grade the most recent for style.
-
The functions will be graded individually.
-
This project may be completed individually or with a partner.
Working with a Partner
- For Project 4, you may choose to work with one other student who is currently enrolled in EECS 183.
- Although you are welcome to work alone if you wish, we encourage you to consider partnering up for Project 4. If you would like a partner but don’t know anyone in the class, we encourage you to use the Search for Teammates post on Piazza if you want to find someone! Please make sure to mark your search as Done once you’ve found a partner.
- As a further reminder, a partnership is defined as two people. You are encouraged to help others and discuss the project in English (or in some other human language), but don’t share project code with anyone but your partner.
- Both partners’ names and uniqnames must be in the header comments in all files in both students’ submissions, but only one partner needs to submit.
- The autograder will automatically track your partnership as if you were one student. This means you still only have 4 submits total per day.
- If you decide to work with a partner, be sure to review the guidelines for working with a partner.
Starter Files
We’ve written some code to get you started. You can download the starter files using this link.
After uncompressing starter-files.zip
, you’ll find the following files:
-
Position.h
andPosition.cpp
Representation of a single position on the grid.
-
Ship.h
andShip.cpp
Representation of a ship.
-
Player.h
andPlayer.cpp
Representation of a player.
-
Game.h
andGame.cpp
Representation of a game.
-
utility.h
andutility.cpp
Contains constants and helper functions.
-
battleship.cpp
Contains the
battleship
function to start and the game. -
start.cpp
Contains the main function for selecting testing or playing battleship.
-
test.cpp
Contains functions for testing classes in the project.
-
grid1.txt
andgrid2.txt
Input text files for creating player grids.
WARNING: The files must be named exactly as they appear above, including capitalization. — Don’t change the file names. Altering the function declarations (prototypes) will cause you to fail the autograder.
To get started, just create a project as you have done before and add each of these into the project, one file at a time.
Start with test.cpp
. This will hold all tests for the member functions
of different classes. Create tests for each class and test each
thoroughly before going onto the next class.
WARNING: DO NOT ALTER any of the
.h
files,utility.cpp
, or the functions already implemented in the.cpp
files.
Ultimately, you’ll need to edit the following files, and we suggest working on them in the orderering shown:
-
test.cpp
-
Position.cpp
-
Ship.cpp
-
Player.cpp
-
Game.cpp
To handle text files in your project make sure that any .txt file is in the same directory as the .cpp and .h files. You can make use of a filestream to read .txt files from your code.
Suggested Timeline
As an approximate timeline, you will be on track if by:
- March 8: You’ve familiarized yourself with the game of battleship and looked over this spec a couple times.
- March 10: Starter code downloaded and new project set up in IDE. Code compiles on your IDE. Code compiles on the autograder (submit to verify). You’ve read through the spec.
- March 13: Tests for the
Position
class added totest.cpp
and functions inPosition.cpp
fully implemented and tested. Submitted to the autograder to verify it’s passing allPosition
tests and catching the associated bug. A lot of this class is done in Lab 8 and Lab 9! - March 14: Tests for the
Ship
class added totest.cpp
and functions inShip.cpp
fully implemented and tested. Submitted to the autograder to make sure it’s working. - March 17: Tests for the
Player
class added totest.cpp
and functions inPlayer.cpp
fully implemented and tested. Submitted to the autograder to make sure it’s working. This is often the most difficult part of the project for students. - March 18: Tests for the
Game
class added totest.cpp
and function inGame.cpp
fully implemented and tested. Played through the game a few times and checked to see that it looks similar to the sample runs (it won’t look exactly the same since the CPU’s moves are random).Submitted to the autograder for the 5% deadline!EC deadlines are posted in the Grading section above. - If at any point your code is not working as intended, checkout the troubleshooting checklist.
- There are tutorial videos to help with some of the common challenges that students encounter in completing this project.
Testing
Classes
When it comes to a class, getting it to compile is only the beginning. There are many errors that do not show up at all until you call the different member functions. Therefore, in your testing, make sure you call every constructor and every member function.
To test class files, the best way is to set up a “driver” to test
all member functions, including the constructors. Consider (and feel free to use) the
following snippet of code as an example. Notice how we need to first declare a Position
(p1
in this case) before we can test any of its member functions.
#include <iostream>
#include <string>
#include <fstream>
#include <cstdlib>
#include "Position.h"
#include "Ship.h"
#include "Player.h"
#include "Game.h"
#include "utility.h"
using namespace std;
void test_position();
void test_ship();
void test_player();
void test_game();
void startTests() {
test_position();
test_ship();
test_player();
return;
}
void test_position() {
// test of default constructor
Position p1;
// test of the other constructor
Position p2(3, 9);
// test of member function: set_row(int row_in)
p1.set_row(5);
// test of member function: set_col(int col_in)
p1.set_col(3);
// test of member functions get_row() and get_col()
cout << "( " << p1.get_row()
<< ", " << p1.get_col()
<< " )" << endl;
// you can also do cin >> p1;
p1.read(cin);
cout << p1 << endl;
return;
}
void test_ship() {
// Write your tests here
return;
}
void test_player() {
// Write your tests here
return;
}
void startTests() {
}
NOTE: Whenever you open a file for reading or writing, you will be reading or writing from the start of the file. If you open a file in a function, then reopen the same file in another function it will start at the beginning of the file again.
Position
The Position class represents a single set of coordinates on the player grid. Positions can be read in using two different text formats:
-
Left parenthesis followed by a row position, a comma, a column position and then closing a right parenthesis, e. g.,
(1,A)
. -
A row position concatenated together with a col position, e. g.,
1A
. Note that no commas or parenthesis are used in this format.
Positions in Battleship will be used to represent ships and moves. Every
position has underlying integer values to represent an index in the
grid. For a position (1,A)
, its underlying integer value will be 0 for
the row
and 0 for the col

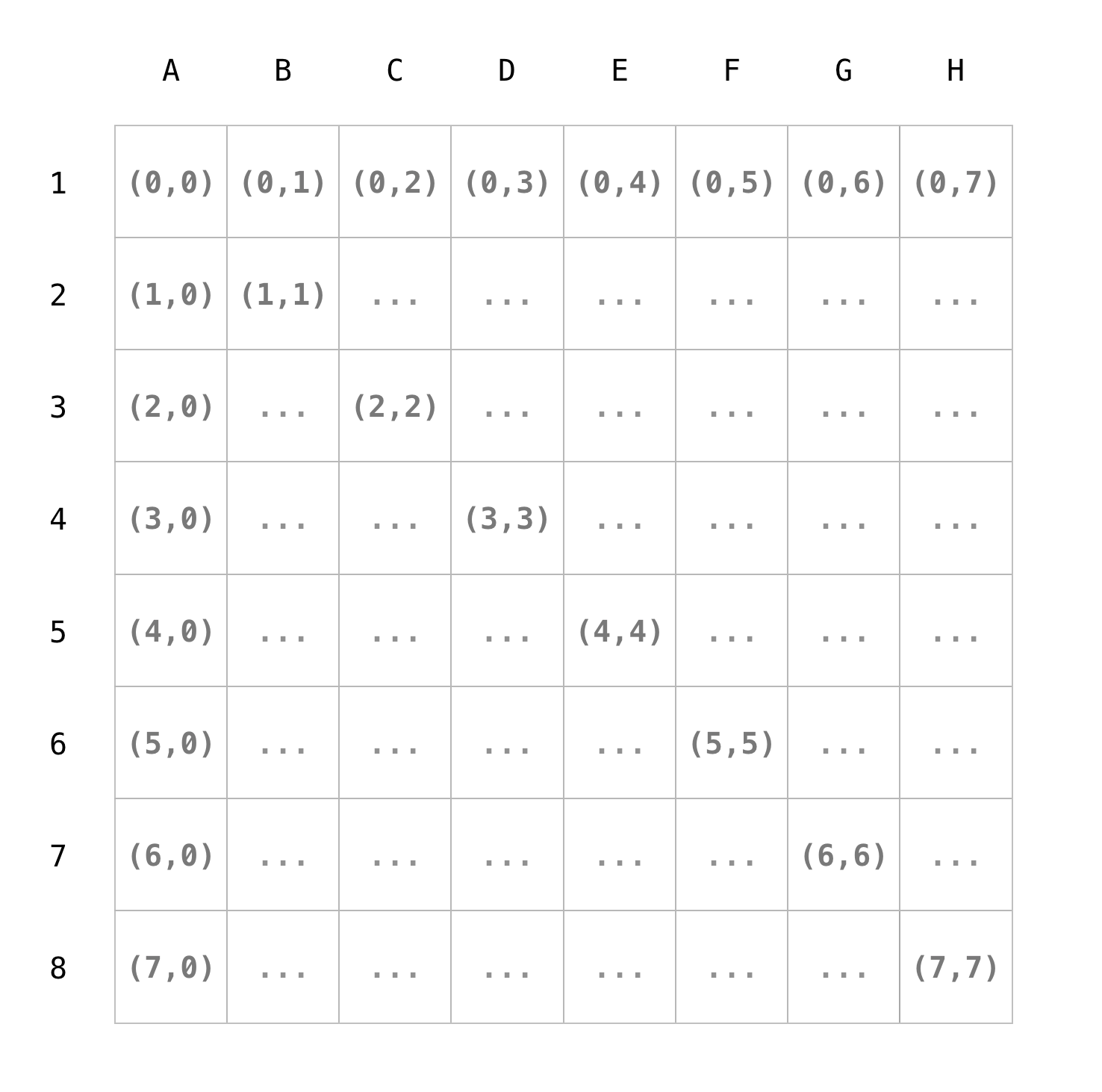

. The grid below has the underlying integer
values of the positions in the first row, column, and diagonal.
A valid position is any position on a valid grid (grid of max size:
MAX_GRID_SIZE
* MAX_GRID_SIZE
).
The RME for Position::read()
states:
col is NOT case senstive, so reading should work for, e.g., "(1,a)" or "1a".
A useful function to help with this is toupper()
, which you can find
in zyBooks. Be careful though - toupper()
returns an int
. Make sure to explicitly
cast it to a char
before using it!
Ship
The Ship class will be used to represent a ship in the Battleship
game. Each ship has a start
and end
position that determines its
size
. For instance, if the starting position is (1,A)
and the ending
position is (1,C)
, the size
of this ship will be 3. In the previous
example, the start
and end
positions had the same row
value, which
indicates that the ship will be horizontal on the grid. Conversely, if
the start
and end
positions of a ship had the same col
value, the
ship will be vertical on the grid. Note that the end
position can
come before the start
position. For instance start
can be (8,E)
,
end
can be (4,E)
, and this ship should have a size
of 5. This
means that the start position could have a greater value than the end
position.
HINT: you may find it the
abs()
function useful for calculating ship sizes.
Ships will be represented by their start and end positions in a file as
follows, (8,A) (8,B)
, where (8,A)
is the start
position and
(8,B)
is the end
position. A valid ship will have length [2-5]
inclusive.
A ship also keeps track of the number of times it was hit using its
num_hits
member variable. num_hits
will be utilized when a ship is
attacked and to determine whether or not a ship has sunk
A single ship can either be only in one column or one row (No ‘L’-shaped or diagonal-placed ships). Ships can not overlap the same location or intersect.
Player
A Player represents a player in the Battleship game. Below are
explanations of each of the member variables in the Player
class.
-
name
Name of the player.
-
num_ships
Number of ships the player has on their grid. When a ship is added to a player, and this value should be incremented.
num_ships
should not be changed during gameplay and should only be modified inadd_ship()
. -
remaining_ships
Remaining ships of the player.
remaining_ships
should be equal tonum_ships
at the start of the game. If a ship is sunk,remaining_ships
will be decremented. -
ships[MAX_NUM_SHIPS]
An array of all the ships of the player.
-
grid[MAX_GRID_SIZE][MAX_GRID_SIZE]
The grid of the player.
-
guess_grid[MAX_GRID_SIZE][MAX_GRID_SIZE]
Keeps track of hits/misses on the opponent’s grid from the player’s point of view. This grid represents the player’s opponent, without the locations of the opponent’s ships marked. That is, guess_grid records the guesses of a player from attacks on the opponent.
If a player has the ships represented by the following positions,
-
(1,D) (1,E)
-
(3,A) (5,A)
-
(5,C) (7,C)
-
(3,E) (3,H)
-
(8,D) (8,H)
their grid will look as follows,
The asterisks (*
) denotes a position that is a part of a ship and a
dash (-
) denotes an empty position.
Suppose your opponent attacks you at positions (1, A)
and (4, A)
.
Since (1, A)
was not a part of your ships, that is a miss ('X'
). On
the other hand, (4, A)
is a part of one of your ships of size 3, that
is a hit ('O'
). The result of the two moves are shown in the grid
below.
Unfortunately, your grid on the console will not be color coded.
If hitting the ship causes that ship to sink, decrement the opponent’s
remaining_ships
, and use announce_ship_sunk()
to print appropriate
message.
Announcing ships by name,
-
A ship of size 2 is called a
Destroyer
-
A ship of size 3 is called a
Submarine
-
A ship of size 4 is called a
Battleship
-
A ship of size 5 is called a
Carrier
The load_grid_file()
function
As part of the Player class, you will implement a function to read in
the start and end positions for each ship to be added to the player’s
grid. Below are two examples of valid .txt
files containing the ship
inputs for a grid. These are also included in the distribution code.
grid1.txt
-----------
(8,A) (8,B)
(6,H) (8,H)
(1,G) (1,H)
(3,F) (3,H)
(3,A) (7,A)
grid2.txt
-----------
3F 3G
(1,A) (1,C)
1E 1G
(3,A) (6,A)
(8,D) (8,H)
To play a full game, a grid file should contain
-
One ship of size 2, two ships of size 3, one ship of size 4 and one ship of size 5.
-
On each row of the file, the first position is the
start
and the second position is theend
of a ship. -
For each position, the
row
value must be in the range of [1, 8] and thecol
value should be between'A'
and'H'
inclusive.
A game of battleships typically has 5 ships. However, the input file contains an arbitrary number of ships, so there can be less than 5 ships or more than 5 ships. You should read all contents of the file and only add each ship represented by the start
and end
positions if there is still room for it.
NOTE: positions can be come in two different formats (see Position section). We’ll need to be able to read both.
Game
A Game represents a gameplay of Battleship. Each game has two
players, player1
and player2
.
Non-default constructor
The Game
class has a non-default constructor, which takes on two
string-type parameters grid1
and grid2
along with two Player-type
parameters called player1
and player2
. grid1
and grid2
are the names
of the files that will be used to initialize the player1
and
player2
grids, respectively. Note that a human user will always be
player1
and the computer will always be player2
. If grid1
or
grid2
are empty strings, the grid should be randomly generated for the
respective players using the already-defined generate_random_grid
function. There are four possible combinations as listed below,
-
grid1
is not empty andgrid2
is not emptyWith this combination, both
player1
’s andplayer2
’s grids will be initialized by reading the files namedgrid1
andgrid2
, respectively. -
grid1
is not empty andgrid2
is emptyWith this combination,
player1
’s grid with be initialized from reading the file namedgrid1
andplayer2
’s grid will be initialized using thegenerate_random_grid
function. -
grid1
is empty andgrid2
is not emptyWith this combination,
player2
’s grid with be initialized from reading the file namedgrid2
andplayer1
’s grid will be initialized using thegenerate_random_grid
function. -
grid1
is empty andgrid2
is emptyWith this combination, both
player1
’s andplayer2
’s grids will be initialized using thegenerate_random_grid()
function.
Check out the load_grid_file()
function in Player to see how
a grid should be initialized from file.
When generating grids randomly, the Player class member functions
print_grid()
and print_guess_grid()
may come in handy for debugging,
since you will not know the positions of those player’s ships. These
functions will print the grid of those players with the positions of
their ships.
The start()
function
The start()
will start the game and keep on going until one of
the players has all their ships sunk (i.e. destroyed) or the number of
completed rounds has reached max_rounds
. The following functions
should be called inside the start()
function:
get_move()
The human player will enter moves in the format <row><col>, where row is a number in the range [1, 8] and col is a letter from [A to H] inclusive. You do NOT need to check that the input is valid in this function.
Prompt for input: <p1 name> enter your move:
Example input: 2B
Other examples of the input format are included in the sample runs portion of the spec.
check_valid_move()
(error handling)
The move is not valid if:
-
The input is not a string of length 2
Error message:
<p1 name> you entered an invalid input
-
row is not a number in the range [1, 8] or col is not a letter from [A to H] inclusive. Note that lowecase letters are valid input.
Error message:
<p1 name> you entered an invalid position
In start()
, you must call get_move()
first and then re-prompt the user for an
input while the input is invalid.
HINT: Think of how you can utilize the return value of
check_valid_move()
in a conditional here.
REMEMBER:
move.length()
is a string library function that return the length ofmove
as an integer.
Making the move
If your input is valid, then
-
p2
will be attacked at that position. You will have to make use of the member functionattack()
to do so. -
p2
will attack you. This will be handled by calling the member functionopponent_make_move()
. You should passdifficulty
that was passed into thestart()
function intoopponent_make_move()
.
Printing the grids
After both p1
and p2
makes their moves, you must print out their
grids in the following format:
Your grid
<grid>
CPU's grid
<opponent grid>
NOTE: You should utilize the member functions
print_grid()
andprint_guess_grid()
to print the grids.
End of game
If either one of the players has had all of their ships sunk (i.e.
destroyed) or the number of completed rounds has reached
max_rounds
, print a message with the name of the winner and the
number of rounds that have passed. If there is no winner, the name
printed should be no one
. The format of the message is as follows (the
<> characters will not be printed).
Game over, winner is <winner name> in <number of rounds> rounds
The round in which either p1
or p2
wins should be counted. Also,
the grids for both players should be printed regardless of whether the
round is a winning round.
If either player has won during a round, the following player should not be able to make a move since they already lost.
Operator Overloading
In the distribution header file Position.h
, you will notice the
following code:
istream &operator>>(istream &ins, Position &pos);
ostream &operator<<(ostream &outs, Position pos);
These are special function declarations that are used to “overload” the
functionality of the >>
and <<
operators. Here are a few notes on
how to interpret the first declaration:
-
The function returns a object of type
istream
(the&
just means that you are actually returning a reference to anistream
). -
operator>>
is actually just the name of the function. However, this function name is special because it tells C++ that you want this function to be called whenever a developer uses the>>
operator likecin >> x;
. -
Notice that, when you use the
>>
operator, there are two operands involved (e. g.,cin
andx
in the previous sample statement). The two declared function parameters (the first of typeistream
and the second of typePosition
) lets C++ know that these are the left and right operands to be used, respectively, when calling>>
. We’ve provided an example of this below. -
Similar to other functions, its implementation looks like:
istream &operator>>(istream &is, Position &pos) { pos.read(is); return is; }
In general, this practice is known as operator overloading and its pretty standard and useful in C++. It helps us here by allowing us to read or write data types beyond the primatives (int, bool, double, etc).
Example use of operator overloading for Position:
cout << "Please enter a position, in the form (row, col)"
<< endl << "where row is an integer between 1 and 8"
<< endl << "and col is a letter between A and H: ";
Position test_pos;
cin >> test_pos;
cout << test_pos << endl;
The above code would produce the following output:
Please enter a position, in the form (row, col)
where row is an integer between 1 and 8
and col is a letter between A and H: (1, A)
(1, A)
(File) I/O
File Locations
Xcode
There are a few things that must be done for Xcode. First, ensure that Derived Data is stored relative to your project folder. Select Xcode > Preferences in the menu bar, click on Locations icon at the top on the window and choose Relative next to Derived Data. This will ensure that executables are saved in your Project folder.
Then, tell Xcode to look for files in the folder where all other project files are stored. From the menu bar, choose Product > Scheme > Edit Scheme.
Select Run on the left, Options on top and then select the checkbox Use custom working directory and navigate to your Project folder where you will store input files.
Now you can place input txt
files right with your .h
and
.cpp
files.
REMEMBER: If you move your project folder, you’ll have to reset the project’s working directory.
Visual Studio
Fortunately, Visual Studio’s working directory is the project folder itself. So head to the project folder that is named the same as the project. There should be another folder with that same name. Place the input files in that second folder.
battleship.cpp
This file has already been implemented for you. You will not submit
battleship.cpp
to the autograder and should not modify this file.
The driver for the game of battleship has been implemented as the
battleship()
function in battleship.cpp
.
A menu choice 3 indicates that the human player would like to emulate
the CPU. This may help you during debugging. This logic is implemented
for you already in the opponent_make_move
function in Game.cpp
. For
the base project, if the menu choice provided is 2 (indicating that the
user selected Play against medium AI), print the following message and
prompt the user again with Menu Options.
Under Construction
Only the S’more version needs to handle a menu option of 2 and implement medium AI.
CPU emulation will NOT be tested in the autograder. It is for you to use during debugging. As such, there is no validation on input for CPU emulation.
Sample Run
Remember, a computer does not interpret. If you misspell a word, you
will fail all autograder test cases. If you omit punctuation, you will
fail all autograder test cases. We strongly suggest you test your
code. An easy way is to use
diffchecker.com,
quickdiff.com, or
diffnow.com or your favorite diff
program.
-
Write your program using Visual Studio or Xcode as described in lecture and discussion section. Your program must be written and documented to comply with EECS 183 Style Guide.
-
Compile and run the program, entering input exactly as shown in a sample run below.
Copy your program output in VS or Xcode and paste into one of the two boxes in your browser at one of the sites above, like diffchecker.com. Copy and paste the text from the sample run into the other box and select “Find the difference” -
Note: the autograder will not fail a test case for differences in whitespace for this project.
Sample run 1
In the following sample run, both the player’s board are generated randomly. Note that the game does not end in this sample run, and the CPU’s move are determined randomly. Because of the random nature of this run, you aren’t expected to match the output exactly.
----------------------------------------
EECS 183
Battleship
----------------------------------------
Enter your name: Alice
Read your grid from file grid1.txt? (y or n): n
Read CPU grid from file grid2.txt? (y or n): n
Generating random grid for Alice
Generating random grid for CPU
Menu Options
------------------------------
1) Play against easy AI
2) Play against medium AI (S'more)
3) Play while emulating CPU (CPU moves entered by player)
4) Quit
Choice --> 1
Starting game with EASY AI
Alice enter your move: 1A
Alice (1,A) hit
CPU (2,D) hit
You received an attack at (2,D)
Your grid
A B C D E F G H
1 - - - - - - - -
2 - - - O - - - -
3 - * - * - - * -
4 - * - - - - * -
5 - * - - * - * -
6 - * * - * - * -
7 - - * - * - * -
8 - - * - - - - -
CPU's grid
A B C D E F G H
1 O - - - - - - -
2 - - - - - - - -
3 - - - - - - - -
4 - - - - - - - -
5 - - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Alice enter your move: 2D
Alice (2,D) miss
CPU (5,D) miss
You received an attack at (5,D)
Your grid
A B C D E F G H
1 - - - - - - - -
2 - - - O - - - -
3 - * - * - - * -
4 - * - - - - * -
5 - * - X * - * -
6 - * * - * - * -
7 - - * - * - * -
8 - - * - - - - -
CPU's grid
A B C D E F G H
1 O - - - - - - -
2 - - - X - - - -
3 - - - - - - - -
4 - - - - - - - -
5 - - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Alice enter your move: 5F
Alice (5,F) miss
CPU (1,D) miss
You received an attack at (1,D)
Your grid
A B C D E F G H
1 - - - X - - - -
2 - - - O - - - -
3 - * - * - - * -
4 - * - - - - * -
5 - * - X * - * -
6 - * * - * - * -
7 - - * - * - * -
8 - - * - - - - -
CPU's grid
A B C D E F G H
1 O - - - - - - -
2 - - - X - - - -
3 - - - - - - - -
4 - - - - - - - -
5 - - - - - X - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Sample run 2
In the following sample run, both the player’s board are generated from files and we emulate the CPU, so all of the output can (and should) be the same when you run it. Note that the game does not end in this sample run.
----------------------------------------
EECS 183
Battleship
----------------------------------------
Enter your name: Bob
Read your grid from file grid1.txt? (y or n): y
Read CPU grid from file grid2.txt? (y or n): y
Menu Options
------------------------------
1) Play against easy AI
2) Play against medium AI (S'more)
3) Play while emulating CPU (CPU moves entered by player)
4) Quit
Choice --> 3
Starting game with CPU EMULATION
Bob enter your move: 12B
Bob you entered an invalid input
Bob enter your move: 3P
Bob you entered an invalid position
Bob enter your move: 1C
Bob (1,C) hit
Enter CPU emulation move: 1D
CPU (1,D) miss
You received an attack at (1,D)
Your grid
A B C D E F G H
1 - - - X - * * *
2 - - - - - - - -
3 * - - - * * * *
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - *
7 * - - - - - - *
8 - * * - - - - *
CPU's grid
A B C D E F G H
1 - - O - - - - -
2 - - - - - - - -
3 - - - - - - - -
4 - - - - - - - -
5 - - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Sample run 3
In the following sample run, both the player’s board are generated from files and we emulate the CPU, so all of the output can (and should) be the same when you run it. Note that the game does not end in this sample run.
----------------------------------------
EECS 183
Battleship
----------------------------------------
Enter your name: Alice
Read your grid from file grid1.txt? (y or n): y
Read CPU grid from file grid2.txt? (y or n): y
Menu Options
------------------------------
1) Play against easy AI
2) Play against medium AI (S'more)
3) Play while emulating CPU (CPU moves entered by player)
4) Quit
Choice --> 3
Starting game with CPU EMULATION
Alice enter your move: 3F
Alice (3,F) hit
Enter CPU emulation move: 8B
CPU (8,B) hit
You received an attack at (8,B)
Your grid
A B C D E F G H
1 - - - - - * * *
2 - - - - - - - -
3 * - - - * * * *
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - *
7 * - - - - - - *
8 - O * - - - - *
CPU's grid
A B C D E F G H
1 - - - - - - - -
2 - - - - - - - -
3 - - - - - O - -
4 - - - - - - - -
5 - - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Alice enter your move: 3G
Alice (3,G) hit
Congratulations Alice! You sunk a Destroyer
Enter CPU emulation move: 8C
CPU (8,C) hit
Congratulations CPU! You sunk a Destroyer
You received an attack at (8,C)
Your grid
A B C D E F G H
1 - - - - - * * *
2 - - - - - - - -
3 * - - - * * * *
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - *
7 * - - - - - - *
8 - O O - - - - *
CPU's grid
A B C D E F G H
1 - - - - - - - -
2 - - - - - - - -
3 - - - - - O O -
4 - - - - - - - -
5 - - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Sample run 4
In the following sample run, both the player’s board are generated from a file.
----------------------------------------
EECS 183
Battleship
----------------------------------------
Enter your name: Bob
Read your grid from file grid1.txt? (y or n): y
Read CPU grid from file grid2.txt? (y or n): y
Menu Options
------------------------------
1) Play against easy AI
2) Play against medium AI (S'more)
3) Play while emulating CPU (CPU moves entered by player)
4) Quit
Choice --> 4
----------------------------------------
Thanks for playing
Battleship
----------------------------------------
Sample run 5
In the following sample run, both the player’s board are generated from files and we emulate the CPU, so all of the output can (and should) be the same when you run it. Alice wins after 17 rounds.
----------------------------------------
EECS 183
Battleship
----------------------------------------
Enter your name: Alice
Read your grid from file grid1.txt? (y or n): y
Read CPU grid from file grid2.txt? (y or n): y
Menu Options
------------------------------
1) Play against easy AI
2) Play against medium AI (S'more)
3) Play while emulating CPU (CPU moves entered by player)
4) Quit
Choice --> 3
Starting game with CPU EMULATION
Alice enter your move: 3F
Alice (3,F) hit
Enter CPU emulation move: 8B
CPU (8,B) hit
You received an attack at (8,B)
Your grid
A B C D E F G H
1 - - - - - * * *
2 - - - - - - - -
3 * - - - * * * *
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - *
7 * - - - - - - *
8 - O * - - - - *
CPU's grid
A B C D E F G H
1 - - - - - - - -
2 - - - - - - - -
3 - - - - - O - -
4 - - - - - - - -
5 - - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Alice enter your move: 3G
Alice (3,G) hit
Congratulations Alice! You sunk a Destroyer
Enter CPU emulation move: 8C
CPU (8,C) hit
Congratulations CPU! You sunk a Destroyer
You received an attack at (8,C)
Your grid
A B C D E F G H
1 - - - - - * * *
2 - - - - - - - -
3 * - - - * * * *
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - *
7 * - - - - - - *
8 - O O - - - - *
CPU's grid
A B C D E F G H
1 - - - - - - - -
2 - - - - - - - -
3 - - - - - O O -
4 - - - - - - - -
5 - - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Alice enter your move: 1A
Alice (1,A) hit
Enter CPU emulation move: 6H
CPU (6,H) hit
You received an attack at (6,H)
Your grid
A B C D E F G H
1 - - - - - * * *
2 - - - - - - - -
3 * - - - * * * *
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - O
7 * - - - - - - *
8 - O O - - - - *
CPU's grid
A B C D E F G H
1 O - - - - - - -
2 - - - - - - - -
3 - - - - - O O -
4 - - - - - - - -
5 - - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Alice enter your move: 1B
Alice (1,B) hit
Enter CPU emulation move: 7H
CPU (7,H) hit
You received an attack at (7,H)
Your grid
A B C D E F G H
1 - - - - - * * *
2 - - - - - - - -
3 * - - - * * * *
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - O
7 * - - - - - - O
8 - O O - - - - *
CPU's grid
A B C D E F G H
1 O O - - - - - -
2 - - - - - - - -
3 - - - - - O O -
4 - - - - - - - -
5 - - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Alice enter your move: 1C
Alice (1,C) hit
Congratulations Alice! You sunk a Submarine
Enter CPU emulation move: 8H
CPU (8,H) hit
Congratulations CPU! You sunk a Submarine
You received an attack at (8,H)
Your grid
A B C D E F G H
1 - - - - - * * *
2 - - - - - - - -
3 * - - - * * * *
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - O
7 * - - - - - - O
8 - O O - - - - O
CPU's grid
A B C D E F G H
1 O O O - - - - -
2 - - - - - - - -
3 - - - - - O O -
4 - - - - - - - -
5 - - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Alice enter your move: 1E
Alice (1,E) hit
Enter CPU emulation move: 1F
CPU (1,F) hit
You received an attack at (1,F)
Your grid
A B C D E F G H
1 - - - - - O * *
2 - - - - - - - -
3 * - - - * * * *
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - O
7 * - - - - - - O
8 - O O - - - - O
CPU's grid
A B C D E F G H
1 O O O - O - - -
2 - - - - - - - -
3 - - - - - O O -
4 - - - - - - - -
5 - - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Alice enter your move: 1F
Alice (1,F) hit
Enter CPU emulation move: 1G
CPU (1,G) hit
You received an attack at (1,G)
Your grid
A B C D E F G H
1 - - - - - O O *
2 - - - - - - - -
3 * - - - * * * *
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - O
7 * - - - - - - O
8 - O O - - - - O
CPU's grid
A B C D E F G H
1 O O O - O O - -
2 - - - - - - - -
3 - - - - - O O -
4 - - - - - - - -
5 - - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Alice enter your move: 1G
Alice (1,G) hit
Congratulations Alice! You sunk a Submarine
Enter CPU emulation move: 1H
CPU (1,H) hit
Congratulations CPU! You sunk a Submarine
You received an attack at (1,H)
Your grid
A B C D E F G H
1 - - - - - O O O
2 - - - - - - - -
3 * - - - * * * *
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - O
7 * - - - - - - O
8 - O O - - - - O
CPU's grid
A B C D E F G H
1 O O O - O O O -
2 - - - - - - - -
3 - - - - - O O -
4 - - - - - - - -
5 - - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Alice enter your move: 3A
Alice (3,A) hit
Enter CPU emulation move: 3E
CPU (3,E) hit
You received an attack at (3,E)
Your grid
A B C D E F G H
1 - - - - - O O O
2 - - - - - - - -
3 * - - - O * * *
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - O
7 * - - - - - - O
8 - O O - - - - O
CPU's grid
A B C D E F G H
1 O O O - O O O -
2 - - - - - - - -
3 O - - - - O O -
4 - - - - - - - -
5 - - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Alice enter your move: 4A
Alice (4,A) hit
Enter CPU emulation move: 3F
CPU (3,F) hit
You received an attack at (3,F)
Your grid
A B C D E F G H
1 - - - - - O O O
2 - - - - - - - -
3 * - - - O O * *
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - O
7 * - - - - - - O
8 - O O - - - - O
CPU's grid
A B C D E F G H
1 O O O - O O O -
2 - - - - - - - -
3 O - - - - O O -
4 O - - - - - - -
5 - - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Alice enter your move: 5A
Alice (5,A) hit
Enter CPU emulation move: 3G
CPU (3,G) hit
You received an attack at (3,G)
Your grid
A B C D E F G H
1 - - - - - O O O
2 - - - - - - - -
3 * - - - O O O *
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - O
7 * - - - - - - O
8 - O O - - - - O
CPU's grid
A B C D E F G H
1 O O O - O O O -
2 - - - - - - - -
3 O - - - - O O -
4 O - - - - - - -
5 O - - - - - - -
6 - - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Alice enter your move: 6A
Alice (6,A) hit
Congratulations Alice! You sunk a Battleship
Enter CPU emulation move: 3H
CPU (3,H) hit
Congratulations CPU! You sunk a Battleship
You received an attack at (3,H)
Your grid
A B C D E F G H
1 - - - - - O O O
2 - - - - - - - -
3 * - - - O O O O
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - O
7 * - - - - - - O
8 - O O - - - - O
CPU's grid
A B C D E F G H
1 O O O - O O O -
2 - - - - - - - -
3 O - - - - O O -
4 O - - - - - - -
5 O - - - - - - -
6 O - - - - - - -
7 - - - - - - - -
8 - - - - - - - -
Alice enter your move: 8D
Alice (8,D) hit
Enter CPU emulation move: 3A
CPU (3,A) hit
You received an attack at (3,A)
Your grid
A B C D E F G H
1 - - - - - O O O
2 - - - - - - - -
3 O - - - O O O O
4 * - - - - - - -
5 * - - - - - - -
6 * - - - - - - O
7 * - - - - - - O
8 - O O - - - - O
CPU's grid
A B C D E F G H
1 O O O - O O O -
2 - - - - - - - -
3 O - - - - O O -
4 O - - - - - - -
5 O - - - - - - -
6 O - - - - - - -
7 - - - - - - - -
8 - - - O - - - -
Alice enter your move: 8E
Alice (8,E) hit
Enter CPU emulation move: 4A
CPU (4,A) hit
You received an attack at (4,A)
Your grid
A B C D E F G H
1 - - - - - O O O
2 - - - - - - - -
3 O - - - O O O O
4 O - - - - - - -
5 * - - - - - - -
6 * - - - - - - O
7 * - - - - - - O
8 - O O - - - - O
CPU's grid
A B C D E F G H
1 O O O - O O O -
2 - - - - - - - -
3 O - - - - O O -
4 O - - - - - - -
5 O - - - - - - -
6 O - - - - - - -
7 - - - - - - - -
8 - - - O O - - -
Alice enter your move: 8F
Alice (8,F) hit
Enter CPU emulation move: 5A
CPU (5,A) hit
You received an attack at (5,A)
Your grid
A B C D E F G H
1 - - - - - O O O
2 - - - - - - - -
3 O - - - O O O O
4 O - - - - - - -
5 O - - - - - - -
6 * - - - - - - O
7 * - - - - - - O
8 - O O - - - - O
CPU's grid
A B C D E F G H
1 O O O - O O O -
2 - - - - - - - -
3 O - - - - O O -
4 O - - - - - - -
5 O - - - - - - -
6 O - - - - - - -
7 - - - - - - - -
8 - - - O O O - -
Alice enter your move: 8G
Alice (8,G) hit
Enter CPU emulation move: 6A
CPU (6,A) hit
You received an attack at (6,A)
Your grid
A B C D E F G H
1 - - - - - O O O
2 - - - - - - - -
3 O - - - O O O O
4 O - - - - - - -
5 O - - - - - - -
6 O - - - - - - O
7 * - - - - - - O
8 - O O - - - - O
CPU's grid
A B C D E F G H
1 O O O - O O O -
2 - - - - - - - -
3 O - - - - O O -
4 O - - - - - - -
5 O - - - - - - -
6 O - - - - - - -
7 - - - - - - - -
8 - - - O O O O -
Alice enter your move: 8H
Alice (8,H) hit
Congratulations Alice! You sunk a Carrier
Your grid
A B C D E F G H
1 - - - - - O O O
2 - - - - - - - -
3 O - - - O O O O
4 O - - - - - - -
5 O - - - - - - -
6 O - - - - - - O
7 * - - - - - - O
8 - O O - - - - O
CPU's grid
A B C D E F G H
1 O O O - O O O -
2 - - - - - - - -
3 O - - - - O O -
4 O - - - - - - -
5 O - - - - - - -
6 O - - - - - - -
7 - - - - - - - -
8 - - - O O O O O
Game over, winner is Alice in 17 rounds
----------------------------------------
Thanks for playing
Battleship
----------------------------------------
Function Table
Below are functions that make use of other functions. Other functions marked with a *
represent another approach to the implementation. Library functions are not included here, although you may find some helpful when implementing the projects.
File | Function | Other functions it should call |
Position.cpp |
Position() (1st non-default) |
Position::check_range() |
Position.cpp |
Position() (2nd non-default) |
Position::check_range() |
Position.cpp |
set_row() |
Position::check_range() |
Position.cpp |
set_col() |
Position::check_range() |
Position.cpp |
read() |
Position::check_range() |
Ship.cpp |
Ship() (1st non-default) |
Position::get_row() ,Position::get_col() ,Ship::is_horizontal() |
Ship.cpp |
is_horizontal() |
Position::get_row() |
Ship.cpp |
has_position() |
Position::get_row() , Position::get_col() , Ship::is_horizontal() |
Player.cpp |
Player() (default) |
Player::init_grid() |
Player.cpp |
Player() (1st non-default) |
Player::init_grid() |
Player.cpp |
add_ship() |
Ship::get_start() , Ship::get_end() , Position::get_row() , Position::get_col() , Ship::is_horizontal() , Ship::has_position() * |
Player.cpp |
attack() |
Ship::has_position() , Ship::hit() , Ship::has_sunk() , Player::announce_ship_sunk() , Position::get_row() , Position::get_col() |
Player.cpp |
load_grid_file() |
Position::Position() (default), Ship::Ship() (1st non-default), Player::add_ship() |
Game.cpp |
Game() (default) |
Player::Player() (default) |
Game.cpp |
Game() (non-default) |
Game::generate_random_grid() , Player::load_grid_file() , Player::get_name() |
Game.cpp |
start() |
Position::Position() (2nd non-default), Game::get_move() , Game::check_valid_move() , Player::get_name() , Player::destroyed() , Player::attack() , Player::print_grid() , Player::print_guess_grid() , Game::opponent_make_move() |
NOTE: There are two non-default constructors for Position. One that accepts row and col in
int
form and a second constructor that expects row and col aschar
.
Testing
Bugs To Expose
There are a total of 19 unique bugs to find in our implementations. Your tests do not need to expose all of the bugs to receive full points. The autograder will tell you the names of the bugs that you have exposed, from the following set:
-
POSITION_DEFAULT_CONSTRUCTOR
-
POSITION_NON_DEFAULT_CONSTRUCTOR_1
-
POSITION_NON_DEFAULT_CONSTRUCTOR_2
-
POSITION_READ
-
SHIP_DEFAULT_CONSTRUCTOR
-
SHIP_NON_DEFAULT_CONSTRUCTOR
-
SHIP_HAS_POSITION
-
SHIP_HIT
-
PLAYER_DEFAULT_CONSTRUCTOR
-
PLAYER_NON_DEFAULT_CONSTRUCTOR
-
PLAYER_ADD_SHIP_1
-
PLAYER_ADD_SHIP_2
-
PLAYER_ADD_SHIP_3
-
PLAYER_ATTACK_1
-
PLAYER_ATTACK_2
-
PLAYER_LOAD_GRID_FILE
-
GAME_NON_DEFAULT_CONSTRUCTOR
-
GAME_GETTERS
-
GAME_CHECK_VALID_MOVE
The autograder test suite will not be exhaustive of all the possible bugs in your program. Therefore, you should prepare more robust suites that include a larger number of test cases.
How to submit
Battleship
To submit function implementations, head to
https://autograder.io/web/project/1479. You must submit all of
Position.cpp
, Ship.cpp
, Player.cpp
, and Game.cpp
, with correct
names. We will use your highest scoring submit to determine your final score.
Make sure that you’ve included your (and your partner’s) name, your (and your partner’s) uniqname and a small description of the program in the header comments.
You have 4 submits per day with feedback, and one additional “bonus” submission. This “bonus” submission allows you to submit 5 times in a single day, but only once during the project. Each submit is shared and applied to both students if you’re in a partnership, so you have 4 collective submits (not 8).
Test Suite
You will submit test.cpp
to the autograder, together with your implementation of the project. The autograder will list the bugs you have exposed, but nothing else. If your test suite does not expose enough
bugs, you’ll need to write more rigorous test cases. You may also submit up to two
extra text files for use in your test cases. These MUST be called
grid1.txt
and grid2.txt
, and may prove useful in testing some of
your functions.
Although both grid1.txt
and grid2.txt
that you submit to the
autograder must contain valid positions for ships that form a valid
grid, you may find it helpful to test locally with a smaller grid to
expedite the game (to test locally, it may be useful to create
files such as grid3.txt
that is a smaller grid).
S’more
Have time for a quick challenge? As we mentioned earlier, the S’mores version of this project will have implement a medium-difficulty AI for the Battleship game.
You will be modifying the large if-statement inside of
opponent_make_move()
in Game.cpp
. Specifically, the else if
clause
that checks whether difficulty is set to MEDIUM
. The easy AI simply
makes a random move, which is not very smart — no wonder the CPU is
having hard time beating you! You can use existing heuristics you find online or come up
with your own to implement a smarter AI that takes into account the
current state of the CPU’s grid. For example, your AI can make a move
that corresponds to the right, bottom, left or top of a previously hit
position.
Here are a few tips:
- Make use of
get_random_number()
if you want to generate a random integer. - If you want to see the CPU’s grid from the current player’s
perspective, call
get_guess_grid_at()
onp2
. - Make sure you print the coordinate
p1
is attacked at, just like how it is done in the easy AI.
IMPORTANT: There is no autograder for the S’more for this project. Do not forget to complete and submit the regular version of the project before attempting the S’more.
